G3 Color


Manufacturer: Fiilex

Product Code: FLXG3CLR

Add to Wishlist

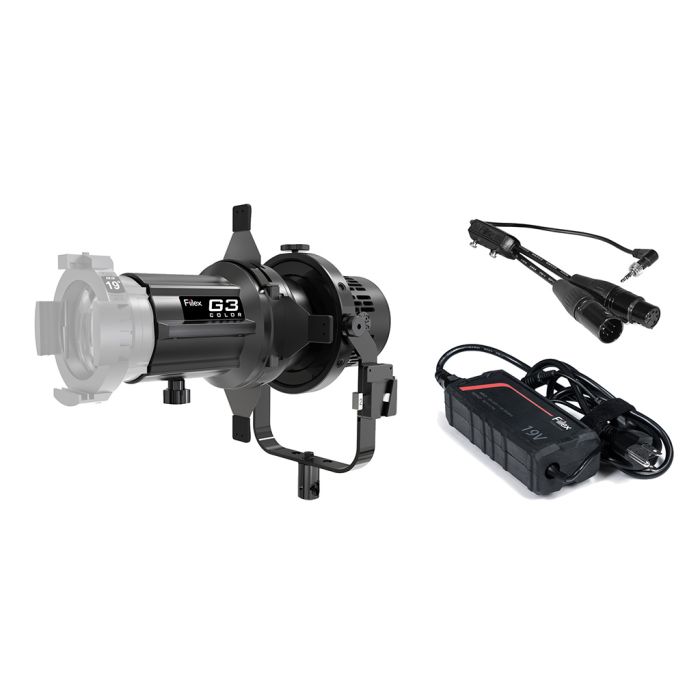

The G3 Color is a cinema-grade 90W full-color ellipsoidal with razor-sharp cuts and a unique 360 degree rotating barrel. The beam produced from either the 19° or 36° lens tube is uniform and bright without any color fringing. At the core of the G3 is the latest generation of Fiilex's patented Dense Matrix LED that adheres to the highest standards of dimming and color calibration. The G3 ellipsoidal gives you full control and can be rigged and hidden anywhere on production sets.

  • High-CRI white light output (2000-10000K)
  • 8 and 16-bit color modes: CCTRGBW, CCTHSI, CIExy, etc.
  • IP-X5 Rating (water resistant)
  • Easy PSU / battery mounting on yoke
  • Razor-sharp cuts and rotating barrel
  • Wireless control via integrated LumenRadio
  • Hardline DMX via XLR-5 adapter
  • Smooth and Sharp dimming modes
  • DMX-controllable fan modes: Full, Auto, Silent, Off
  • Compact and easy to hide

Beam Angle: 19° / 36° lens tube
CCT Range: 2000-10000K continuous tuning + magenta/green shift
CRI / TLCI: 95 / 90 typical
Control Modes: CCT, HSI, RGBW, Gels, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming: 100 - 0% flicker free
Dimming Modes / Curve: Smooth, Sharp / Linear, Gamma
Light Engine: DiCon Dense Matrix LED
Power Consumption: 90W max AC | 80W max DC
BTUs/hour: 307 (BTUs/hour) max
DC Input: 14 - 30V DC (via 5.5mm x 2.5mm Barrel)
AC Input: 100 - 240V AC, 50 ~ 60Hz
DMX/RDM Port: TRRS (XLR-5 via adapter)
Wireless Control: Integrated LumenRadio CRMX
USB Power Output: 5V/1A (via USB-C)
Weight: Fixture: 6.7 lbs / 3.0kg (includes lens tube) | Power adapter: 1.1 lbs/0.5kg
Size (L x W x H): 14.4" x 8.6" x 11.0" / 36.6cm x 21.8cm x 27.8cm
Mount Type: Baby stud 5/8" female (16mm)
IP Rating: IP-X5 (rain-resistant)
Thermal Design: Controllable fan
Operating Temperature: 0-40ºC / 32-104ºF
Gobo Size: M Size (Diameter 66mm / Max Image: 48mm / Max Thickness: 1mm)
