Block/KF21 Single Battery Kit (2 x Battery)



Manufacturer: Kino Flo

Product Code: KIT-BK12

Add to Wishlist




Kino Flo Lighting Systems partners with BlockBattery for newly introduced KF21 (NiMH) battery systems for its LED line. The Kino Flo/BlockBattery systems are designed to work with the following Kino Flo LED products with DC capability: Celeb 250 LED DMX Diva-Lite 20 & 30 LED DMX FreeStyle 31 & 21 LED DMX Select 20 & 30 LED DMX.

The KF21 battery can power 28.8V (20-34VDC) applications. Run time for Kino Flo products listed above is approximately 1 hour and 10 minutes at full brightness. When fixtures are dimmed, the battery will last longer.

Charge time is only 1.5 hours versus Lithium batteries that take approximately 4 hours to fully charge. Unlike lithium batteries, the Kino Flo/BlockBattery is travel friendly with no travel restrictions. In addition to powering 28.8V, battery adapters may be used to access 14.4V to be used with products with 14.4V input. It’s like having two batteries for the price of one!

Block Battery Safety Data Sheet

  • NiMH safety advantage for shipping/travel
  • Fast Charge (1.5h vs 4h for Lithium Ion) – Less batteries required
  • Only 1 battery needed instead of 2 to run a Kino Flo fixture
  • 28.8V battery but can get used with 14.4V products (adapter needed)
  • 140Whr (run time on Kino Flo AC/DC LED products up to 1h and 10min at full power)

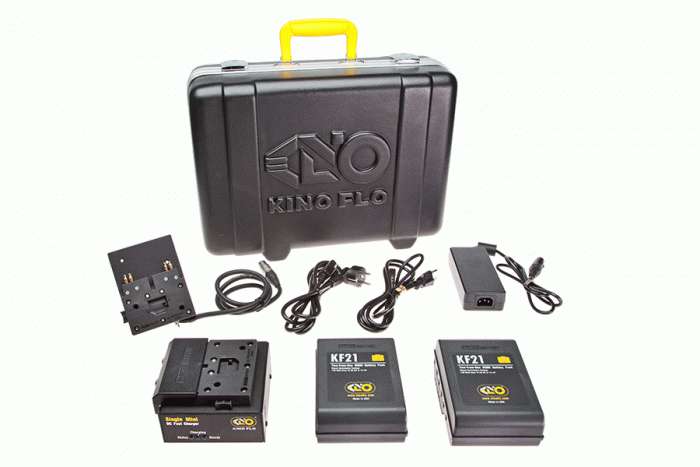

SYS-BK12 Components:

1 Block/KF21 Single Fast Charger w/ Univ Power Supply (BAT-BC1U)
2 Block/KF21 Battery, 140Whr, 28.8V NiMH (BAT-KF21)
1 Block/KF21 Mafer Mount 28.8V, 3-Pin xlr, 3ft (BAT-MM1)
1 Travel Case (KAS-BK12)

Dimensions:
47 x 19 x 36cm
(18.5 x 7.5 x 14”)

Weight:
9 kg
(19 lbs)

Battery BAT-KF21

WHR: 140WHR, 5.0A @ 28VDC
Dimensions: 15 x 11 x 8cm
Weight: 2.0kg
Type: NiMH

Charger BAT-BC1

Input Voltage: 48VDC, 3.0A
Dimensions: 14 x 14 x 9cm
Weight: 1.0kg

Power Supply PWS-120W-48X

Input Voltage: 100-240VAC, 50/60Hz 1.4A
Output Voltage: 48V, 2.5A 120W Max
Dimensions: 16.5 x 6.5 x 4cm
Weight: 1.0kg
