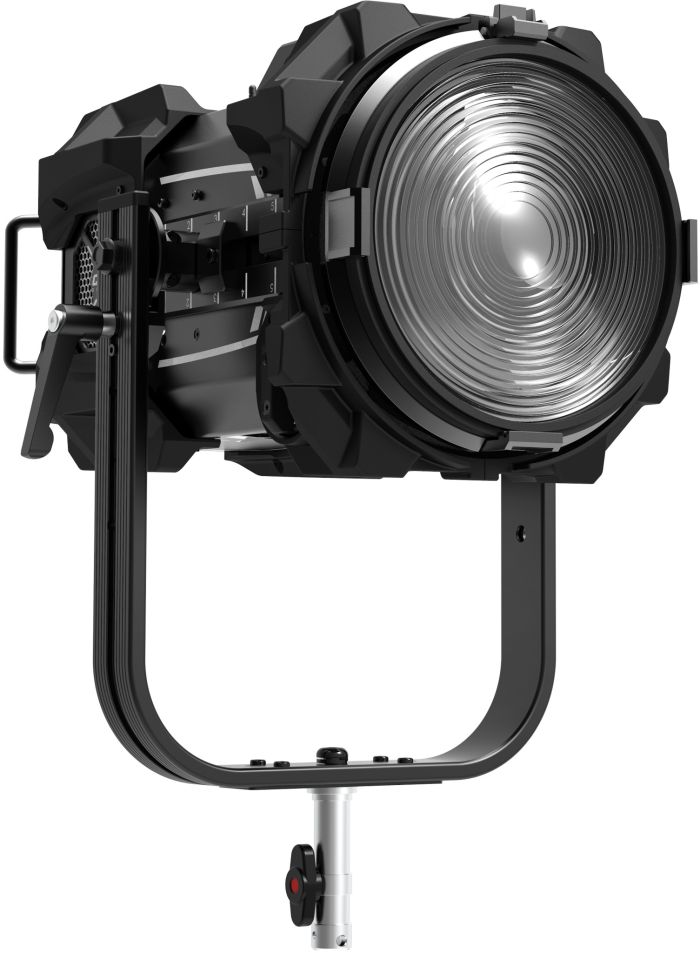

The Q10 Color is a 900W 10” LED Fresnel that generates high-quality full-color light output. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver color quality and optical versatility that are superior to previous generations of LED fresnels. With its wide spot/flood range, smooth dimming to 0%, no flicker, and high CRI, the Q10 Color combines the extensive feature set of top-tier RGBW LEDs with the performance of a tungsten fresnel.
- High-CRI white light output (2000-10000K)
- 8 and 16-bit color modes: CCTRGBW, CCTHSI, CIExy, etc.
- Unmatched spot/flood range of 11-70°
- Smooth and Sharp dimming modes
- Removable fresnel for wider throw / softbox compatibility
- DMX-controllable fan modes: Full, Variable, Silent, Off
- 8-leaf barndoor cuts clean with no color splitting
- Height adjustable yoke
- IP-X5 Rating (water resistant)
- Wireless control via integrated LumenRadio
Fresnel Size: 10”
Beam Angle: 11°-70° with Fresnel (77° without Fresnel)
CCT Range: 2000-10000K continuous tuning + magenta/green shift
CRI / TLCI: 95 / 90 typical
Control Modes: CCT, HSI, RGBW, Gels, Effects, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming: 100 - 0% flicker free
Dimming Modes: Smooth, Sharp
Light Engine: 1x 850W DiCon Dense Matrix LED
Power Consumption: 900W max AC | 850W max DC
BTUs/hour: 3071 (BTUs/hour) max
DC Input: 48V DC (via powerCON 32 A)
AC Input: 100 - 240V AC, 50~60Hz (via powerCON TRUE1)
DMX / RDM Port: XLR-5
Wireless Control: Integrated LumenRadio
Ethernet: sACN, ArtNet (via etherCON)
USB Power Output: 5V/2A (via USB-A)
Weight: 20kg (44 lbs)
Size (L x W x H): 50.2cm x 42.5cm x 63.7cm (19.8" x 16.7" x 25.1")
Mount Type: Combo (baby stud female / junior stud male)
IP Rating: IP-X5 (water resistant)
Thermal Design: Aluminum extrusion cooling system w/ fan
Operating Temperature: 32 - 104ºF / 0 - 40º C
