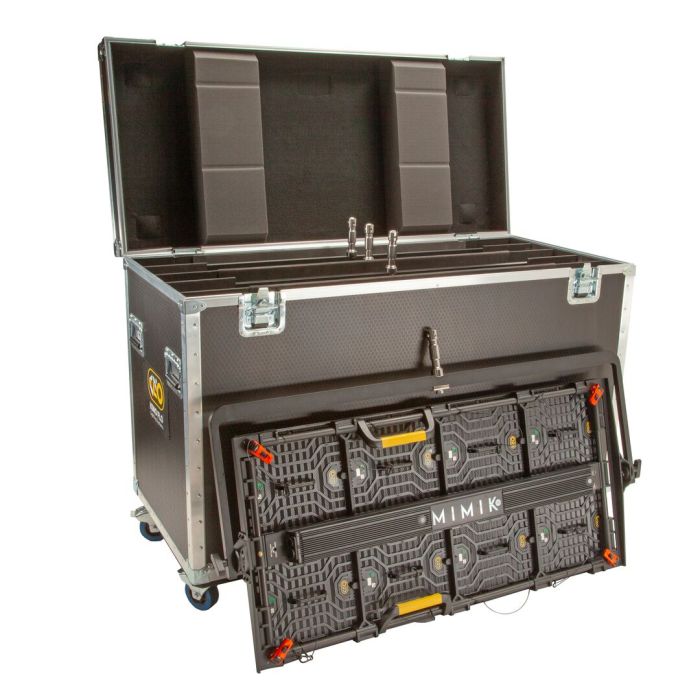

MIMIK 120 Yoke Kit (4-Unit, Univ)
Manufacturer: Kino Flo
Product Code: KIT-MIM-1204Y
MIMIK 120 is an image based video lighting tile that mirrors video content while applying a higher tonal and color rendering range. MIMIK delivers extended spectral bandwidth and cinematic color fidelity when lighting talent and set elements in virtual production environments.
Patented Kino Flo technology translates an incoming RGB video signal into five individual emitters (warm white, cool white, red, green and blue), generating synchronized foreground lighting that creates the utmost realism on virtual sets.
Embodied in a lightweight carbon fiber frame, MIMIK adapts to on-set configurations with easy mobility. Controlled by the Megapixel VR HELIOS LED processor, MIMIK expands real-time and post-production options, delivering 10,000 NITS, along with the ability to shoot as high as 900 frames per second and offer as many as 30 Alpha channels at 30 frames per second.
This revolutionary full spectrum LED image based lighting solution enables latency-free synchronization to an LED volume along with the versatility of optional control from a lighting desk.
MIMIK 120 is a hybrid video lighting tile that mirrors video content while applying a higher tonal and color rendering, delivering extended spectral bandwidth and cinematic color fidelity when lighting talent and set elements in virtual production environments.
Embodied in a lightweight carbon fiber frame, MIMIK 120 adapts to on-set configurations with easy mobility. Controlled by the Megapixel Helios video processor, MIMIK 120 expands real-time and post- production options.
MIMIK 120 displays a full spectrum image that doubles as a light source. Patented Kino Flo technology translates an incoming RGB video signal into five individual emitters (warm white, cool white, red, green and blue), generating foreground lighting that synchronizes with LED volumes and creates the utmost realism on virtual sets.
- Pixel Pitch: 10mm
- Pixel Count: 7,200 pixels (120 x 60)
- Pixel Construction: 5 LEDs per pixel – Warm White 2700K, Cool White 6500K, Red, Green, Blue
- LED Package: SMD 5050 – Black Body
- Viewing Angle Horizontal / Vertical: 140° / 140°
- LDM (LED Display Module): 8 Total – Magnetically attached – Front side Serviceable
- LDM Transparency: Solid – Black front
- Scan Ratio: 1/3
- Refresh Rate: 30kHz (30,720Hz)
- Gray Scale: 16-bit minimum (65,535 steps)
- Frames Per Second: 900 fps
- Max Alpha Channels: 30 at 30 fps
- Max Brightness Calibrated: ~10,000 nits
- Input Voltage VAC: 100~240VAC; 50/60Hz
- Power Consumption Max / Average: 400W / 200W (Varies based on video content)
- Control Software: No software or drivers to install. Controlled thru Megapixel Helios.
- Receiver Card: 2 x PX1 (Megapixel)
- Video Processor Required: Megapixel Helios
- Junior (4096×2160) = 8,847,360 pixels = ~240 MIMIK 120
- 4K (4096×2160) = 8,847,360 pixels = ~1,200 MIMIK 120
- 8K (8192×4320) = 35,389,440 pixels = ~2,000 MIMIK 120
- Frame Material: Carbon Fiber
- Max. Stacking : 5 Tiles high, no limit to width
- Tile Linking: Corner blocks, 2-way and 4-way locking
- Curving (Concave & Convex): Concave (With attachment)
- Certifications: CE, UKCA, ETL, FCC
- Patents: US 11,393,372 B2
- IP Rating: IP20 – Indoor
- Operational Temp / Humidity: -10°~45°C, 10~90%RH / 14°~113°F, 10~90%RH
- Tile Dimension: 120cm x 60cm x 8cm / 47.2” x 23.6” x 3.2”
- Tile Weight: 12.5kg / 27.6lbs
